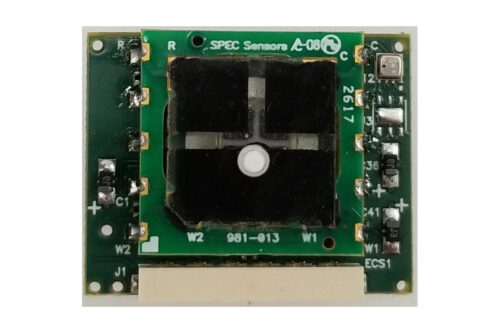

User Replaceable Ozone Sensor Module

Features:

  • Choice of calibration @ 0.1, 1.0, or 10.0 ppm.
  • Digital Sensor interface utilizing serial UART communication for data transmission and settings changes.
  • Analog Voltage Output, featuring a buffered 0-2 V signal.  Default settings:  Set Point=1V, Max Range=2V.
  • Zero Signal Input, connected to an instrument button for easy re-zeroing of the sensor module.

Specifications:

  • Sensor: Electrochemical SPEC Sensor.
  • Range: 0-0.1 ppm, 0-1.0 ppm, or 0-10.0 ppm
  • Sensitivity: 0.03 ppm – Sensitivity will decrease if sensor module extension cables are used.
  • Resolution:  .005 ppm / .01 ppm / 0.1 ppm
  • Response time: < 30s TO 50% FS, <180s to 90% FS
  • Data Update Rate: 1 second
  • Recommended Temperature Range: 50 °F to 86 °F (10 °C to 30 °C).
  • Temperature Compensation:  Yes [10-40C]
  • Recommended Humidity Range:  25 – 75% RH
  • Size:  30x24mm
  • Warm-up Time: 1 hour before testing; for best results allow 12 hours before continued use.
  • Supply Voltage:  3.5-15 VDC, 100 mA

$325.00

Sku: OEM-O3

Clear

Additional information

ppm output

0.1 ppm, 1.0 ppm, 10.0 ppm
