SM-500

The SM-500/RME-O3 is a new and improved Calibrated Digital Ozone Sensor Module in a compact form factor!

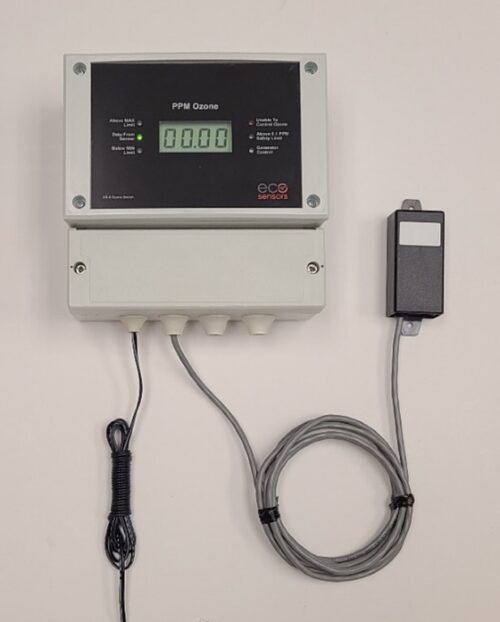

The SM-500 is a calibrated ozone sensor instrument that utilizes a state-of-the-art electrochemical (EC) ozone sensing element. The SM-500 can be paired seamlessly with Eco Sensors’ OS-4 & OS-6 ozone controllers or it can be configured as an independent digital ozone instrument via RS-232 or USB serial communication.

The SM-500 includes a user-replaceable calibrated sensor module (RME-O3) that enables users to easily maintain calibration requirements for their application.

This technology from Eco Sensors provides accurate ppb-level detection and resolution over a wide (0.03-20 ppm, or 1-50 ppm) concentration range. The sensor module is compensated for temperature and humidity effects, with little to no cross sensitivity to VOC’s.

Typical Applications:

• Laundries using ozone
• Large noisy factory environments
• Casinos and other ozonated public areas
• Agricultural/cold storage areas
• Farms
• Food processing plants

Features:

• 30 ppb lower detection limit with 5 ppb resolution
• Integrated re-zero button
• Choice of two operating ranges (0-20 ppm or 1-50 ppm)
• Electrochemical Sensor
• Wide detection range
• Wide power supply range: 5-30 VDC (< 100 mA)
• USB power and communication option included
• RS-232 communication option included
• Low Power
• Low Maintenance

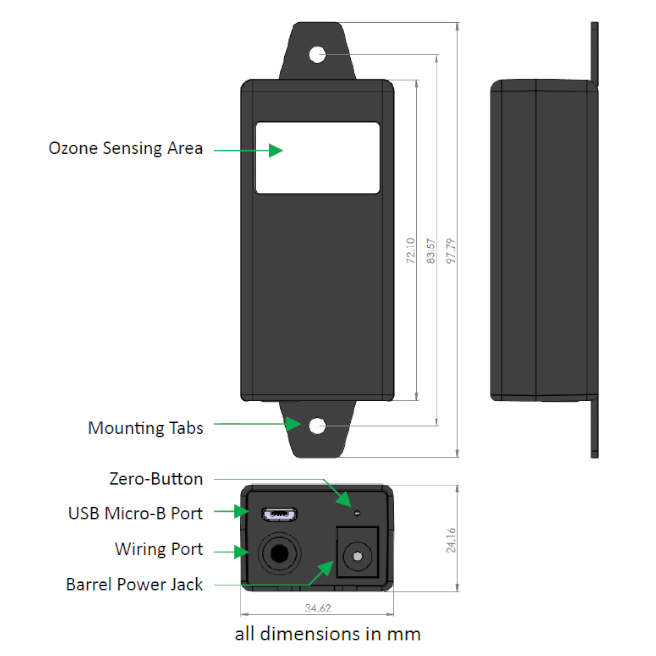

• Small enough to mount almost anywhere
